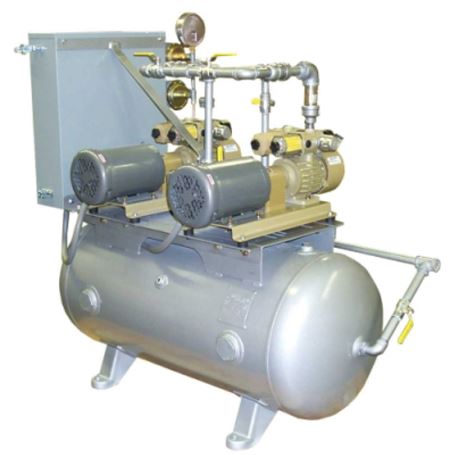

Tri-Tech Dry Rotary Vane Vacuum System

Product Number: TRVVOTD0203
Quantity:

Overview:
  • Meet all NFPA 99 and NEC requirements
  • Oil free, air-cooled, single stage, direct driven Rotary Vane Vacuum Pumps.
  • UL listed electrical control panel
  • ASME coded receiver tank
  • Designed for ease of installation – the only field connections are inlet, exhaust, and the power connection
  • Includes audible and visual alarms, and dry contacts for remote alarm connection
  • Completely tested prior to shipment

 Model HP Capacity @ 19" HgTank Size Gal.B TU/HR            dB(A) Level Weight (Lbs.)
 TRVVOTD0153 1.5 5.380 V3,054 67 730
 TRVVOTD0203  2 8.280 V4,072  72 835
 TRVVOTD0303  3 12.5 80 V6,108 73 894
 TRVVOTD0404  5 15.4 120 V7,250 75 1,049
 TRVVOTD0504  5 22.1 120 V10,180  77 1,077
 TRVOTD0755 7.5  30.4 200 H15,270 79 1,727
 TRVOTD1006  10 55.4 240 H20,360 81 2,165
