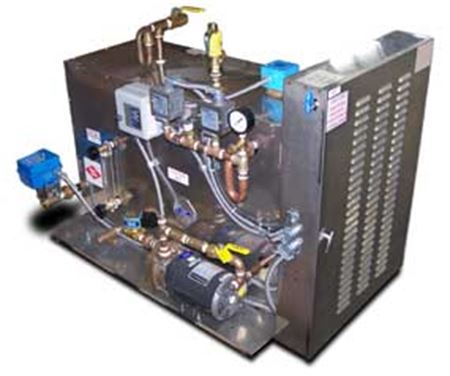

Electro Steam LB Series Steam Generator

Electro Steam LB Series Steam Generator
Click for larger view
Quantity:
Email to a Friend







Model Number
LB-40
LB-50
LB-60
Electric Rating
40
50
60
Developed Boiler Horse Power
4.0
5.0
6.0
Steam Capacity (at 212F) LBS.
138
173
207
Gross BTU Output
133,900
167,500
201,000
Dimensions



Height, Overall
33
33
33
Length, Overall
50
50
50
Width, Overall
26
26
26
Steam Outlet (High)
3/4
3/4
3/4
Steam Outlet (Low)
3/4
3/4
3/4
Amperage



208V. 3 Phase
112
139
167
480V. 3 Phase
49
61
743
Shp. Wgt. Low Pressure
425
425
425
Shp. Wgt. Low Pressure
500
500
500

Model Number
LB-80
Electric Rating
80
Developed Boiler Horse Power
8.0
Steam Capacity (at 212° F) LBS.
258
Gross BTU Output
251,250
Dimensions

Height, Overall
37
Length, Overall
52
Width, Overall
26
Steam Outlet (High)
3/4
Steam Outlet (Low)
3/4
Amperage

208V. - 3 Phase
209
480V. - 3 Phase
91
Shp. Wgt. Low Pressure
625
Shp. Wgt. Low Pressure
 <
